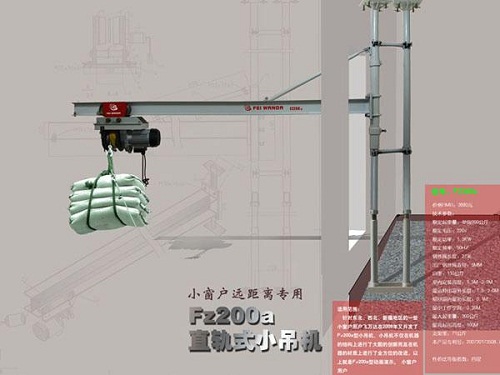

Straight Wanda FZ200a small crane rail
FZ200a Small crane for indoor .2008 newly developed straight-rail type small crane main features can be within 30 cm wide use of small windows, a window from 1.5 meters deep, and fast. Was straight country Rail dimension of a small crane qualified production house. use of safe, reliable, stable performance. fully functional.
Model: FZ200a
Price RMB: 3080
Technical parameters:
Lifting capacity: 200 kg single hook
Rated voltage: 220v
Rated power: 1.3KW
Rated frequency: 50HZ
Rope length: 27 m
Factory rope diameter: 5 mm
Weight: 120 kg
Indoor installation height: 1.5M-3.2M
Furthest out of the window length: 1.5-3.0M
Retracted window within the shortest length: 0.1M
The minimum working space: 0.35M
Maximum weight: 300 kg
Maximum lifting height: 100M
Bracket Weight: 71 kg
Patent No.: ZL200920001144.3
Cost level: four-star
Scope:
2008 newly developed straight rail type small crane main features can be within 30 cm wide use of small windows, distance 1.5 meters deep out of the window, hanging automatically walking speed. Rail is the straight small crane Victoria A qualified production house. use of safe, reliable, stable performance.
|
